STP Cat5e+3x2.5 Power Cable SWB LSZH Sheathed Fire Resistant Composite Cable

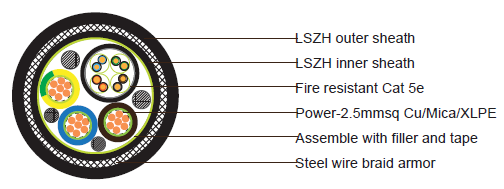

Construction:
STP CAT5E 4x2x24AWG
Conductor |
Solid copper conductor |
|---|---|
Insulation |
Polyethylene+ FR Silicone Rubber |
Shield &Fire Barrier |
Individual Al-foil shield , add mica tape outside |
Sheath(optional) |
FRLSZH sheath. Nominal outer diameter 10.5+/-1.5mm |
Sheath Color |
Black |
3x2.5mm² Power Cable
Conductor |
2.5mm2 Stranded tinned copper wire |
|---|---|
Fire Barrier |
Mica tape |
Insulation |
XLPE. Nominal outer diameter 5.0mm |
Insultion Color |
Brown, Blue, Green/Yellow |
Element Assembly
Filler |
PE or PP material |
|---|---|
Fire Barrier |
Fire barrier tape(optional) |
Inner Sheath |
Black FRLSZH， ID(inner sheath diameter ) min. 22.0mm |
Armor |
Galvanized steel wire braid， coverage 85% |
Outer Sheath |
FRLSZH， Nom. OD (overall diameter) min.26.0mm |
Sheath Color& property |
Black,UV resistance, hydrocarbon resistance and water tightness |
Electrical and Physical Properties @20°C:

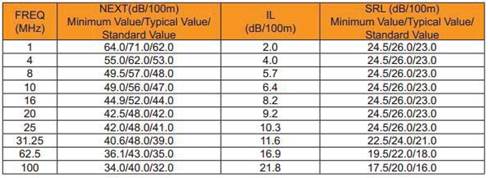

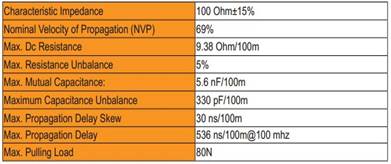

Cat5e
Power Cable 2.5mmsq
Electrical Resistance: 7.90hm/km
Insulation Resistance: 1000
M0hmxkm Voltage: 300/500V or 0.6/1KV
optional Operating Temperature: -30oC/+80oC
Fire Performance:
Low Smoke Capacity: IEC61034-1/2
Halogen Free: IEC60754-1/2
Flame Propagation: IEC60332-3-24
Fire Resistant: IEC60331-21
Mud Resistant & other properties could be met upon request
